Right Front Speaker Connector End View - C652A

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

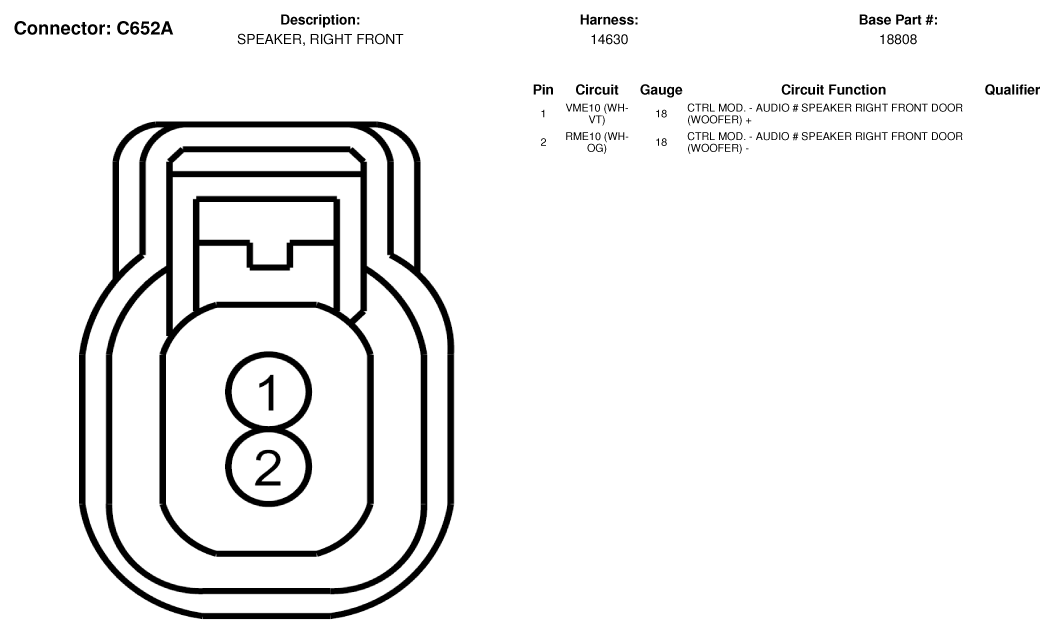

Fig 1: Right Front Speaker Connector End View (C652A)
G07336150Courtesy of FORD MOTOR CO.
