Passenger Seat Horizontal Motor Connector - C332

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

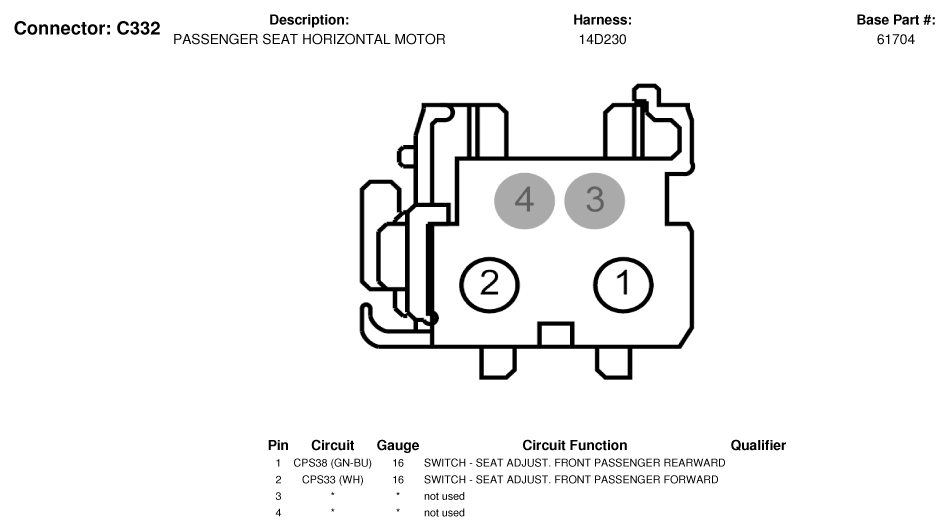

Fig 1: Passenger Seat Horizontal Motor Connector End View (C332)
G07336085Courtesy of FORD MOTOR CO.
