Memory Set Switch Connector - C503

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

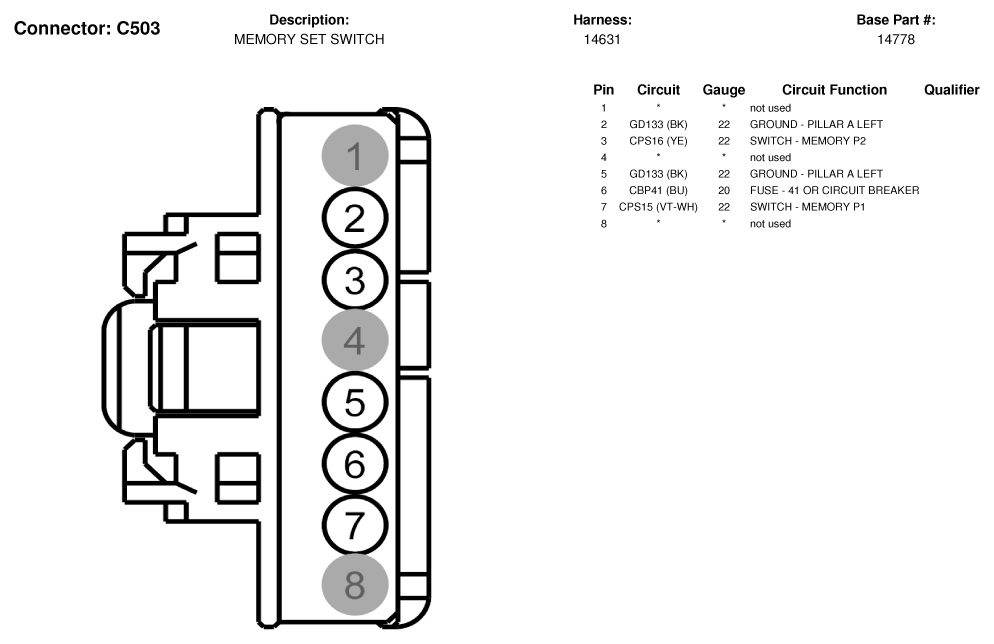

Fig 1: Memory Set Switch Connector End View (C503)
G07336131Courtesy of FORD MOTOR CO.
