Manifold Absolute Pressure Sensor / Intake Air Temperature 2 Sensor Connector - C1087

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

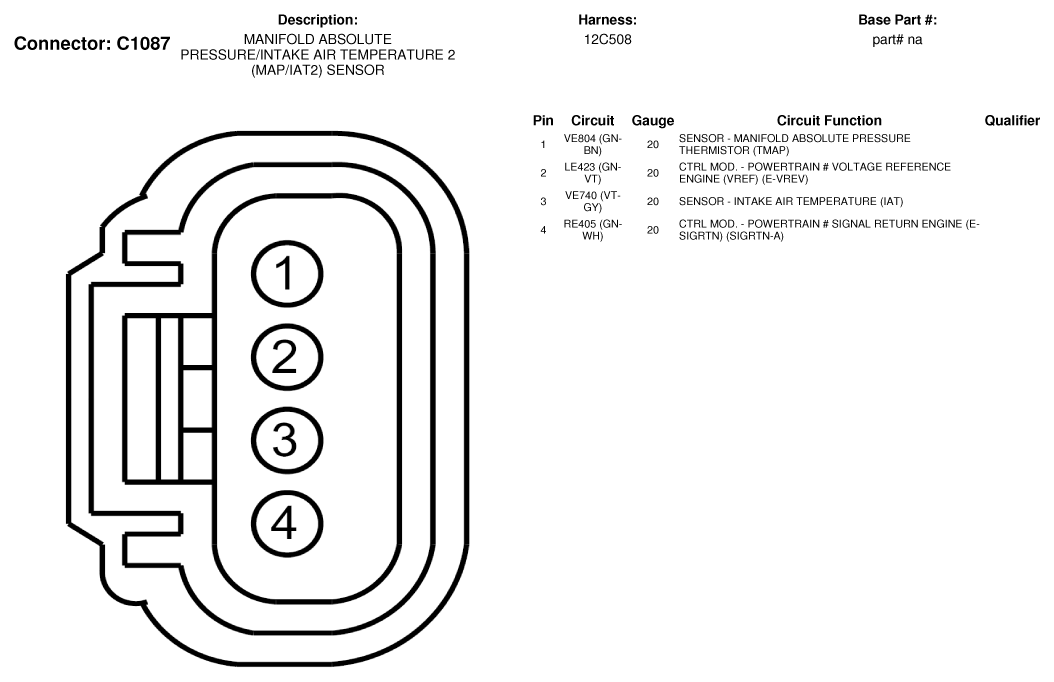

Fig 1: Manifold Absolute Pressure Sensor / Intake Air Temperature 2 Sensor Connector End View (C1087)
G07336186Courtesy of FORD MOTOR CO.
