Left Headlamp Assembly Connector - C1021

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

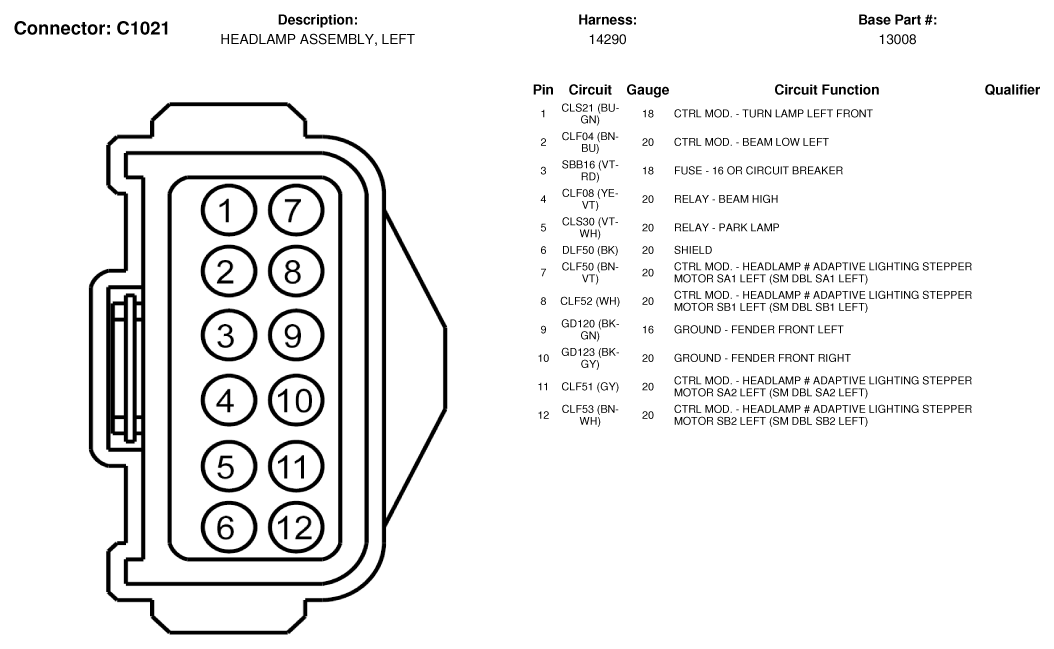

Fig 1: Left Headlamp Assembly Connector End View (C1021)
G07336179Courtesy of FORD MOTOR CO.
