Left Front Speaker Connector End View - C523B

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

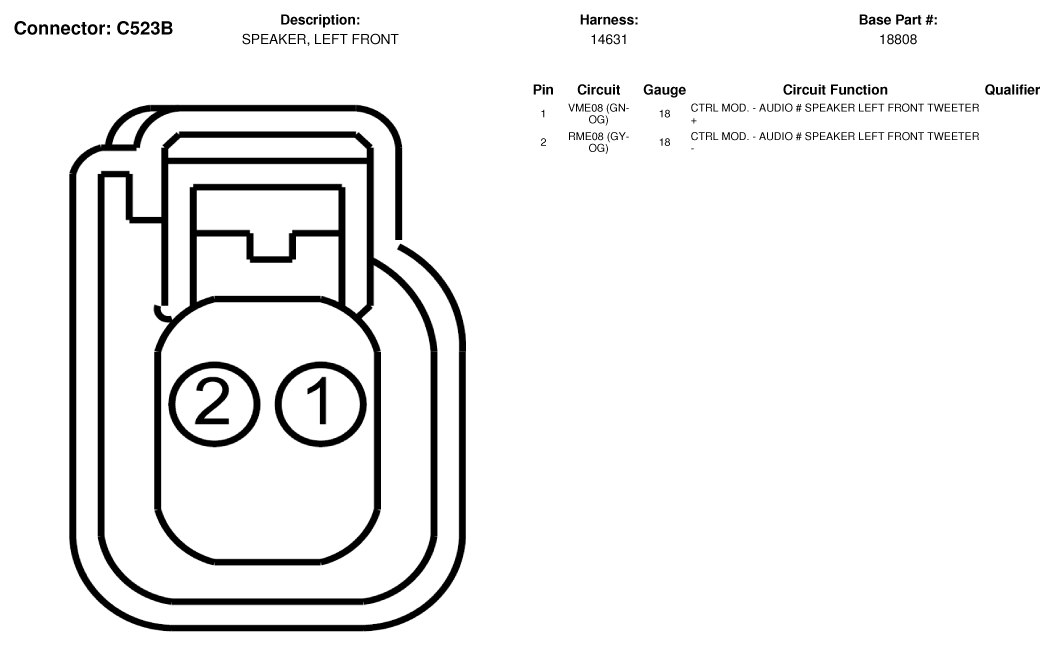

Fig 1: Left Front Speaker Connector End View (C523B)
G07336136Courtesy of FORD MOTOR CO.
