Left Front Impact Sensor Connector - C1465

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

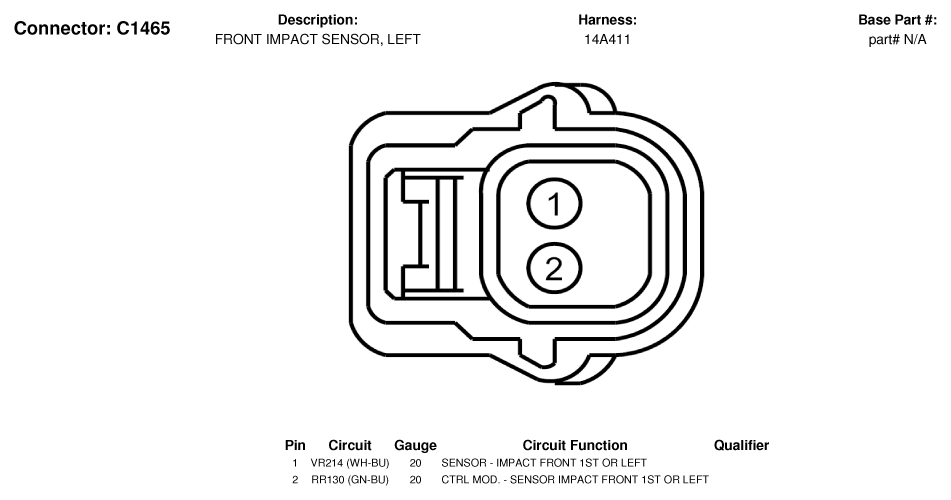

Fig 1: Left Front Impact Sensor Connector End View (C1465)
G07336222Courtesy of FORD MOTOR CO.
