Inline Connector End View - C312

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

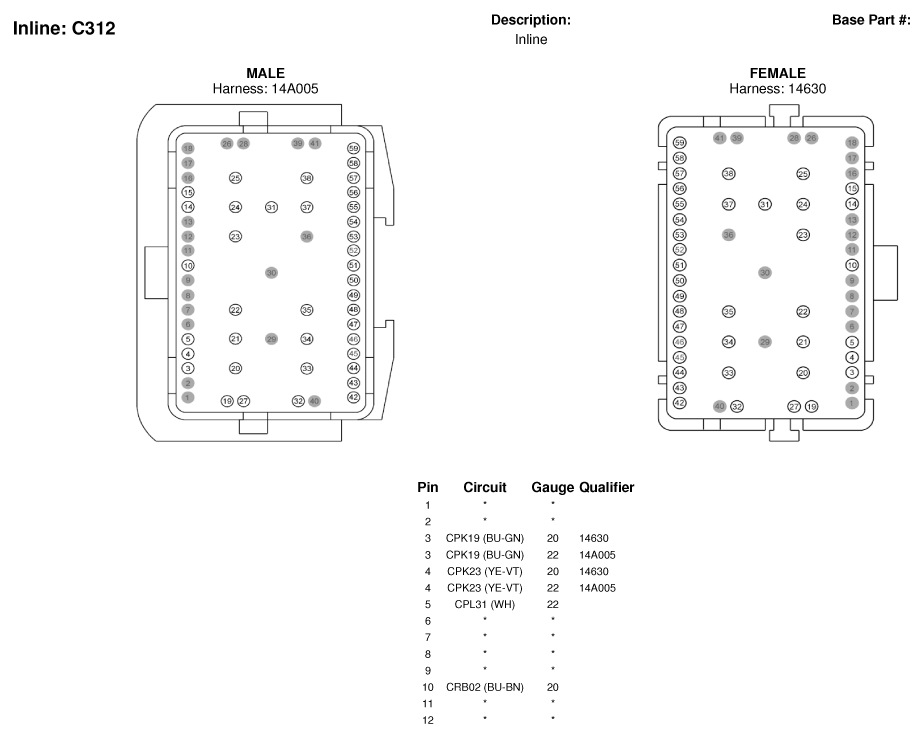

Fig 1: Inline Connector End View (C312) (1 Of 2)
G07336074Courtesy of FORD MOTOR CO.

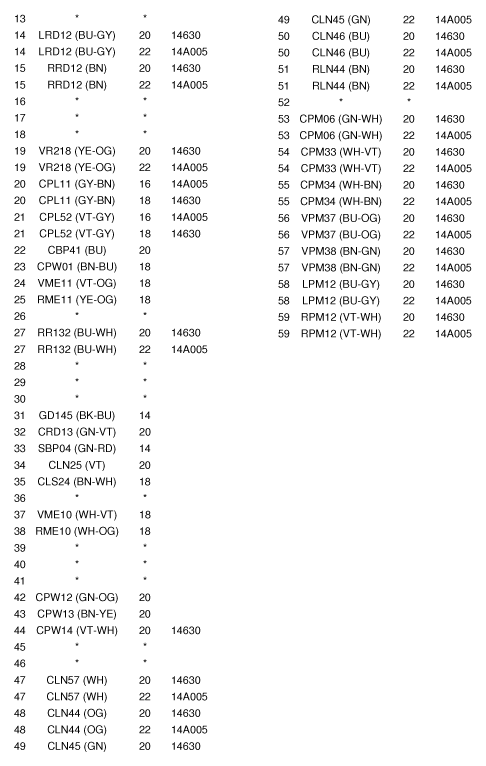

Fig 2: Inline Connector End View (C312) (2 Of 2)
G07336075Courtesy of FORD MOTOR CO.
