In-Vehicle Temperature Sensor Connector - C233

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

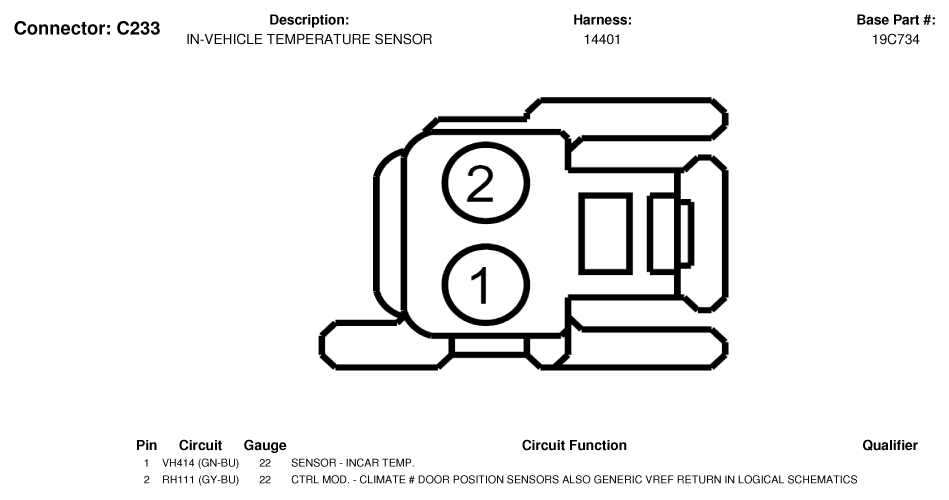

Fig 1: In-Vehicle Temperature Sensor Connector End View (C233)
G07336043Courtesy of FORD MOTOR CO.
