Headlamp Switch Connector - C205

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

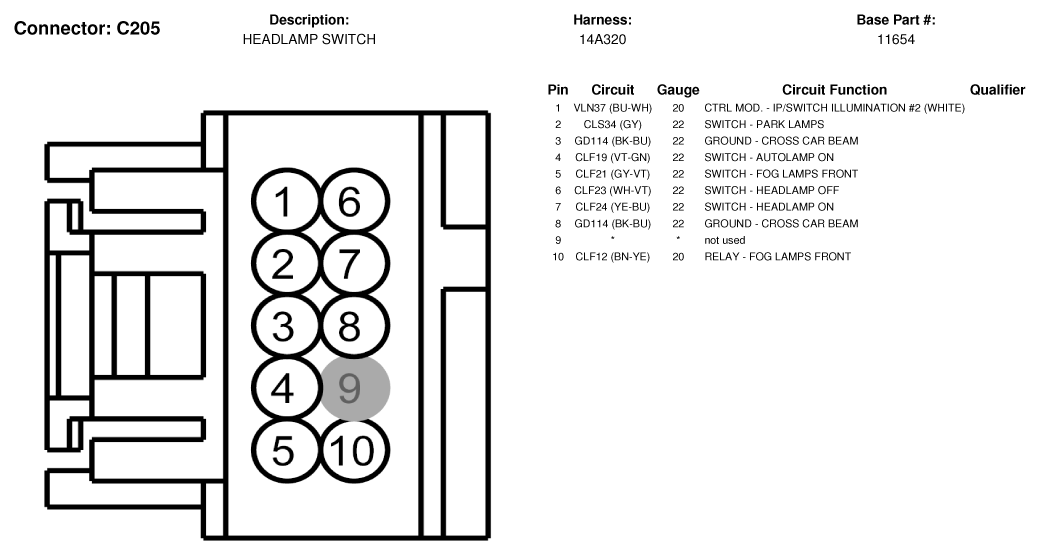

Fig 1: Headlamp Switch Connector End View (C205)
G07336018Courtesy of FORD MOTOR CO.
