Head Up Display Module Connector - C2395

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

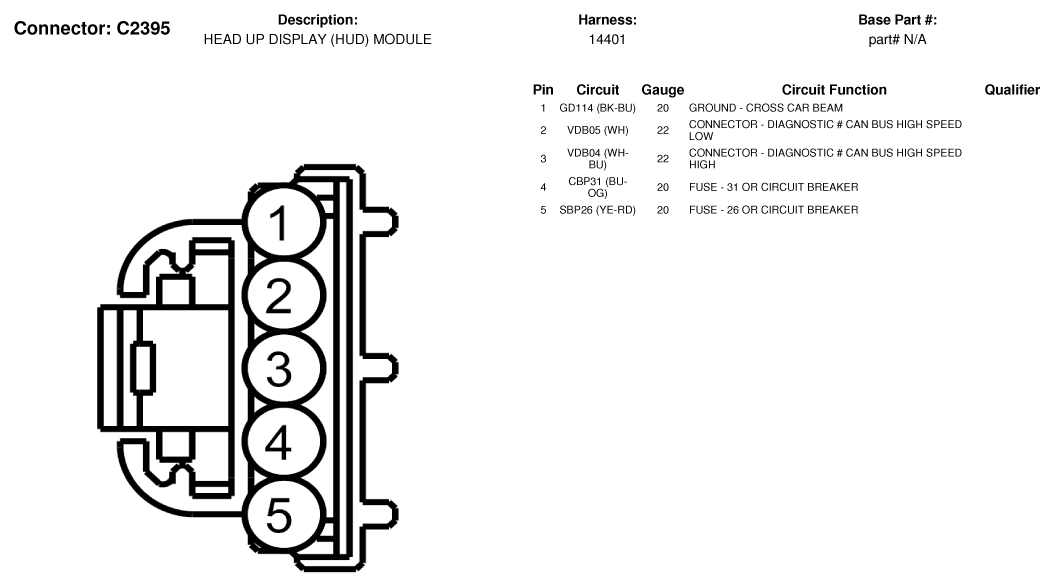

Fig 1: Head Up Display Module Connector End View (C2395)
G07336274Courtesy of FORD MOTOR CO.
