Dual Climate Controlled Seat Module Connector End View - C3265B

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

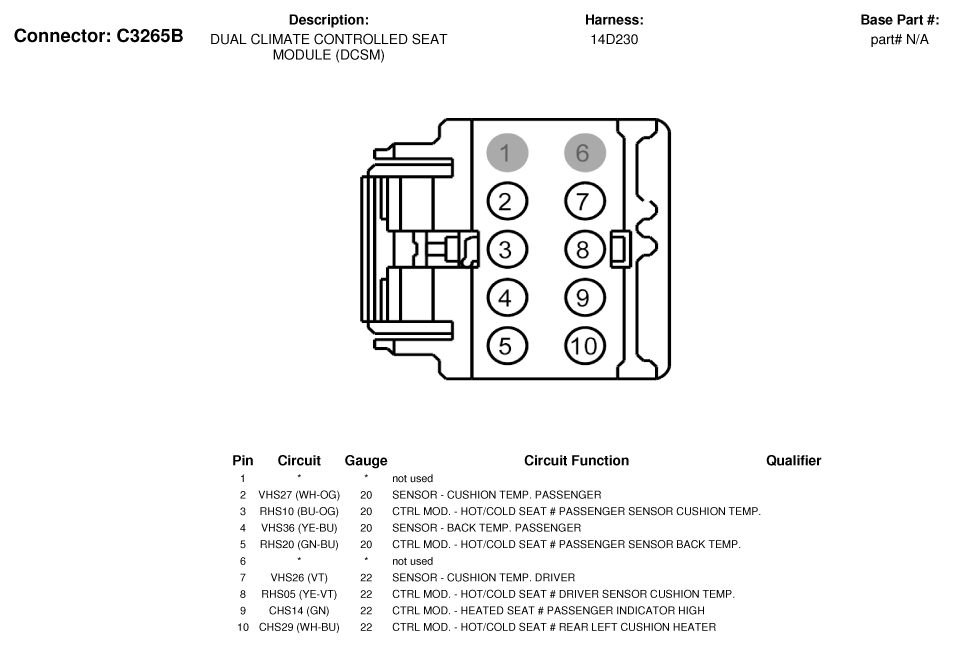

Fig 1: Dual Climate Controlled Seat Module Connector End View (C3265B)
G07336343Courtesy of FORD MOTOR CO.
