Driver Side Front Door Lock Unit Connector - C525

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

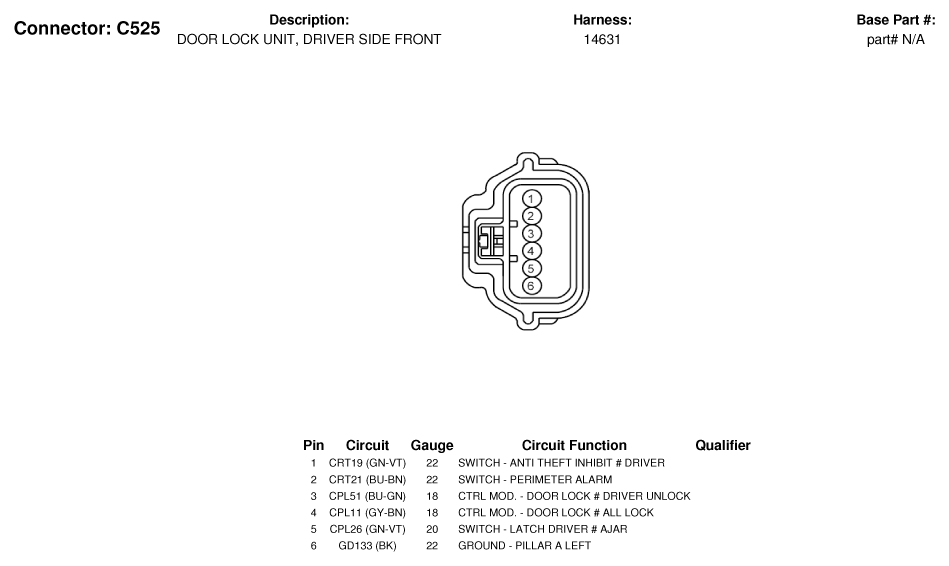

Fig 1: Driver Side Front Door Lock Unit Connector End View (C525)

Courtesy of FORD MOTOR CO.
