Driver Seat Module Connector End View - C341D

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

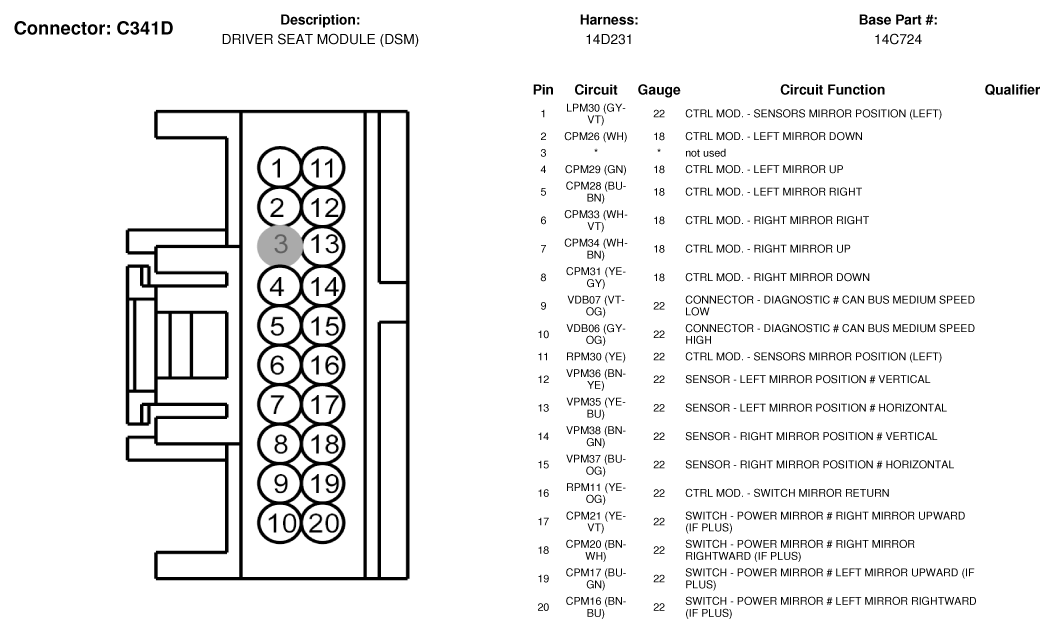

Fig 1: Driver Seat Module Connector End View (C341D)
G07336096Courtesy of FORD MOTOR CO.
