Driver Air Bag Module Connector End View - C216A

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

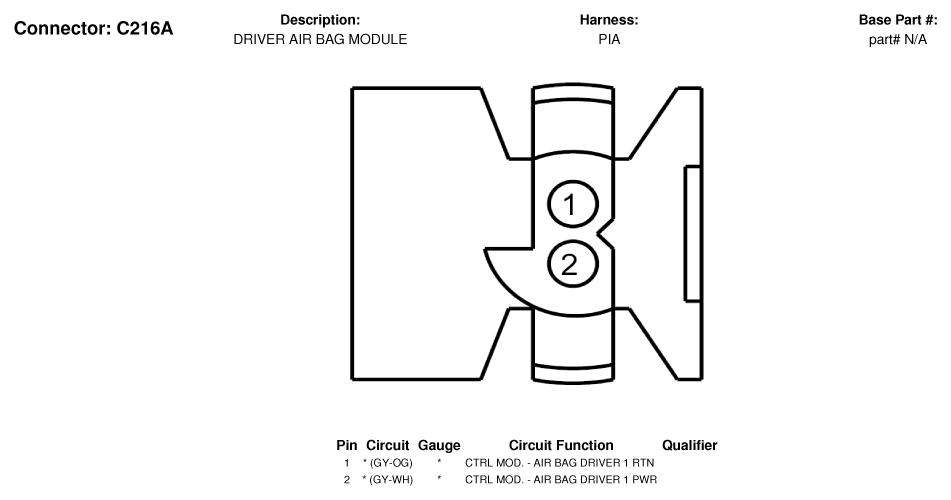

Fig 1: Driver Air Bag Module Connector End View (C216A)
G07336031Courtesy of FORD MOTOR CO.
