DC/AC Inverter Module Connector End View - C4210A

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

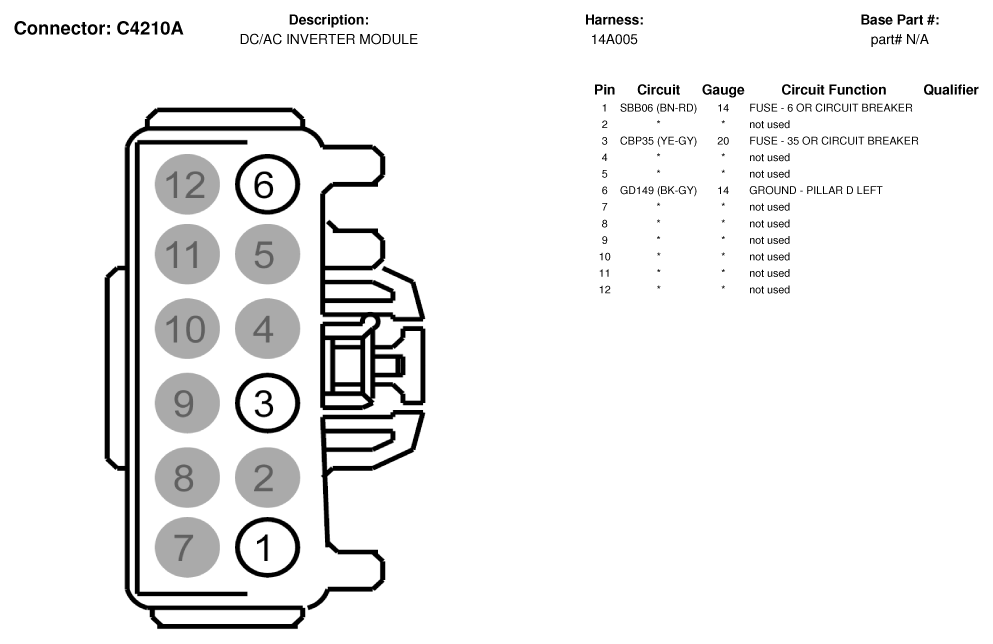

Fig 1: DC/AC Inverter Module Connector End View (C4210A)
G07336415Courtesy of FORD MOTOR CO.
