Camshaft Position Sensor Connector - C1366

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

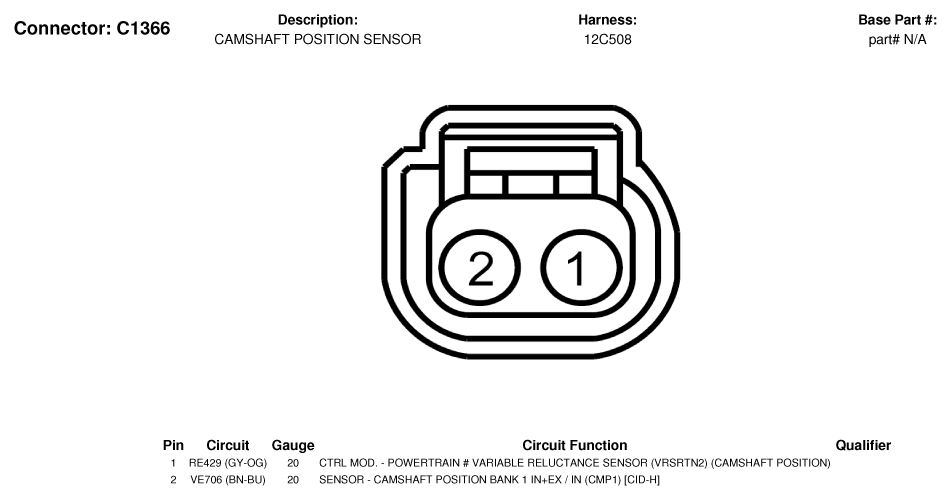

Fig 1: Camshaft Position Sensor Connector End View (C1366)
G07336208Courtesy of FORD MOTOR CO.
