Autolamp Sensor / Sunload Sensor Connector - C286

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

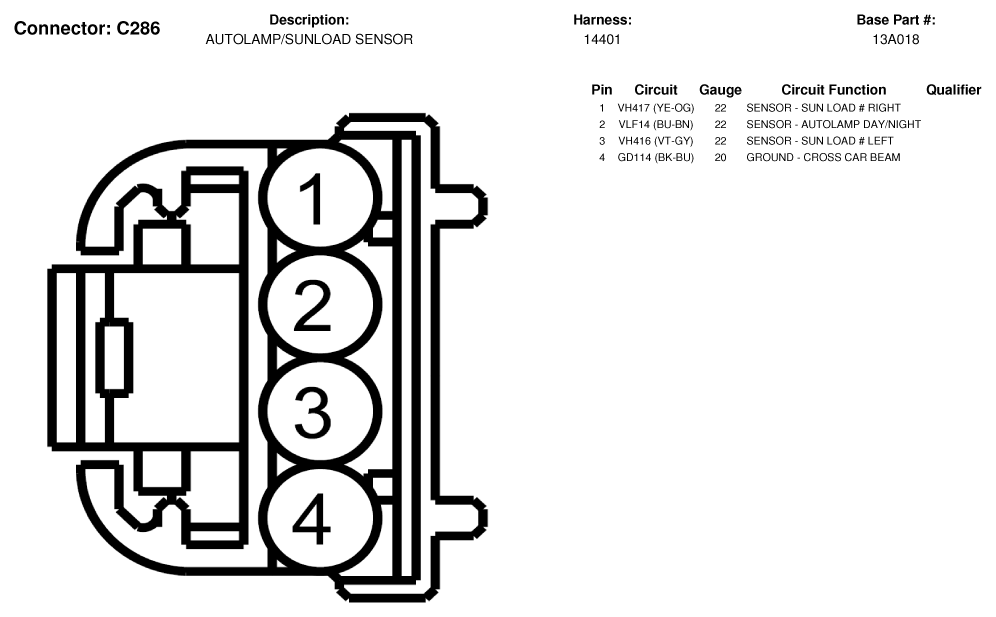

Fig 1: Autolamp Sensor / Sunload Sensor Connector End View (C286)
G07336064Courtesy of FORD MOTOR CO.
