Audio Input Jack Connector - C3312

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

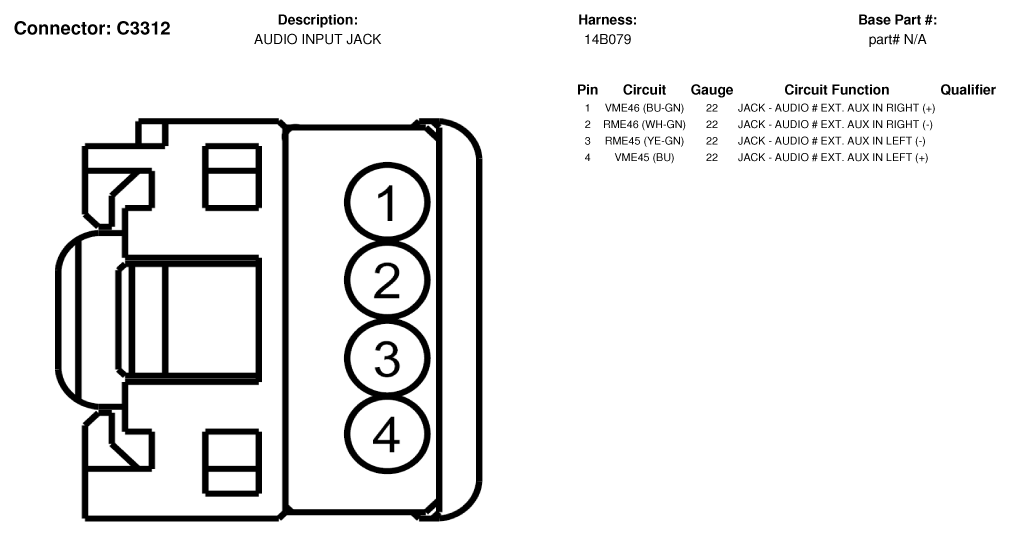

Fig 1: Audio Input Jack Connector End View (C3312)
G07336348Courtesy of FORD MOTOR CO.
