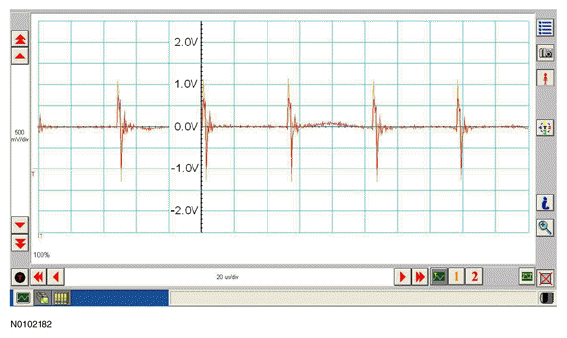

Fig 1: Oscilloscope Waveform - CAN (+) Circuit Shorted To Ground
Courtesy of FORD MOTOR CO.
In the event that the data (+) circuit becomes shorted to ground, both the data (+) and data (-) circuits are pulled low (0V) and all communication capabilities are lost.
