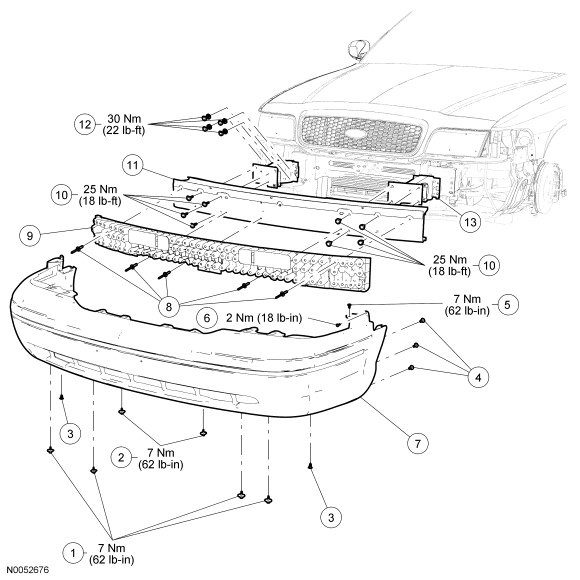

Bumper - Exploded View, Front
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | N808841 | Lower radiator air deflector bolts (4 required) |
| 2 | N808841 | Radiator vertical deflector bolts (2 required) |
| 3 | 388577 | Pin-type retainers (2 required) |
| 4 | 390018 | Front bumper cover pin-type retainers (6 required) |
| 5 | N808841 | Front bumper cover bolt (2 required) |
| 6 | N800322 | Front bumper cover-to-fender screw (2 required) |
| 7 | 17D957 | Front bumper cover |
| 8 | W701913 | Front bumper isolator rivets (5 required) |
| 9 | 17E898 | Front bumper isolator |
| 10 | W505434 | Front bumper bolts (8 required) |
| 11 | 17750 | Front bumper |
| 12 | W520513 | Front bumper bracket nuts (4 required) |
| 13 | 17752 RH/ 17753 LH | Front bumper brackets |
- For additional information, refer to the appropriate procedures.
