Fuel Pump Driver Module (FPDM): Notes

WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

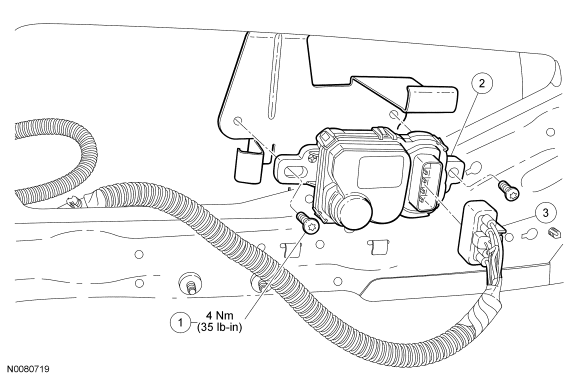

Fig 1: Exploded View Of Fuel Pump Driver Module (FPDM) With Torque Specification
GF0046715Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W504755 Fuel pump driver module (FPDM) bolt (2 required)
2 9D372 FPDM
3 14A464 FPDM electrical connector
