Accelerator Pedal and Bracket: Installation
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
All vehicles
- Install the accelerator pedal and bracket assembly.
- Install the 3 accelerator pedal and bracket nuts.
- To install, tighten to 9 Nm (80 lb-in).
- Connect the accelerator pedal motor drive cable connector.
- Connect the accelerator pedal motor electrical connector.
- Connect the accelerator pedal sensor electrical connector.
- Index the adjustable accelerator pedal and bracket assemblies. For additional information, refer to HYDRAULIC BRAKE ACTUATION article.
Vehicles with adjustable accelerator pedal and bracket
All vehicles
NOTE:

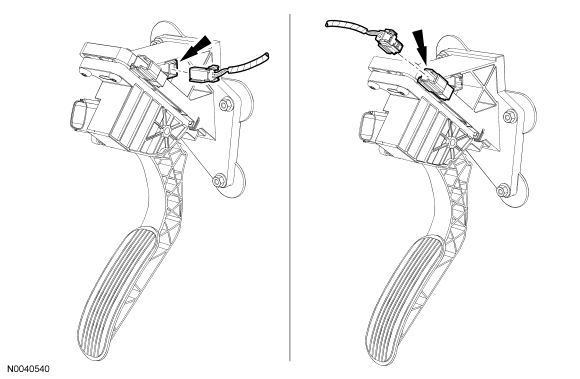

On vehicles with a fixed pedal and bracket assemblies, the service unit may differ from the original unit. The non-working accelerator pedal motor electrical connector may be plugged into either of these locations shown depending on the length of the harness.
Vehicles with adjustable accelerator pedal and bracket
