Headlamp Assembly: Notes

WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

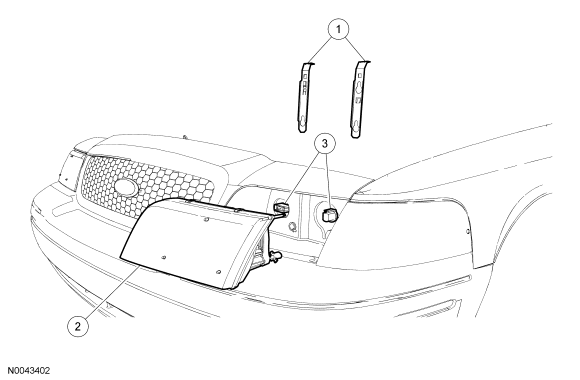

Fig 1: Exploded View Of Headlamp Assembly With Torque Specifications - Crown Victoria

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Headlamp assembly retainers (2 required)
2	13006/13005	Headlamp assembly (LH/RH)
3	-	Headlamp assembly electrical connectors (part of 14290)

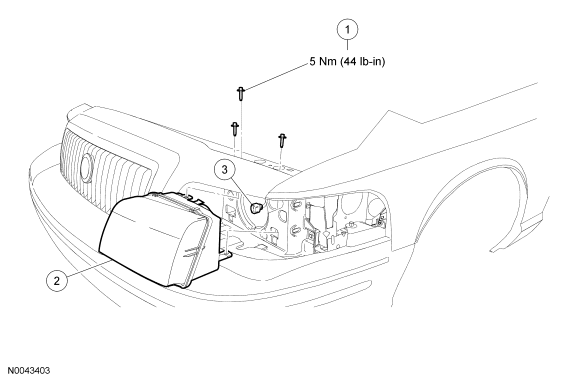

Fig 2: Exploded View Of Headlamp Assembly With Torque Specifications - Grand Marquis

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W503925	Headlamp assembly bolts (3 required)
2	13006/13005	Headlamp assembly (LH/RH)
3	-	Headlamp assembly electrical connector (part of 14290)
