Bumper - Exploded View, Front

WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

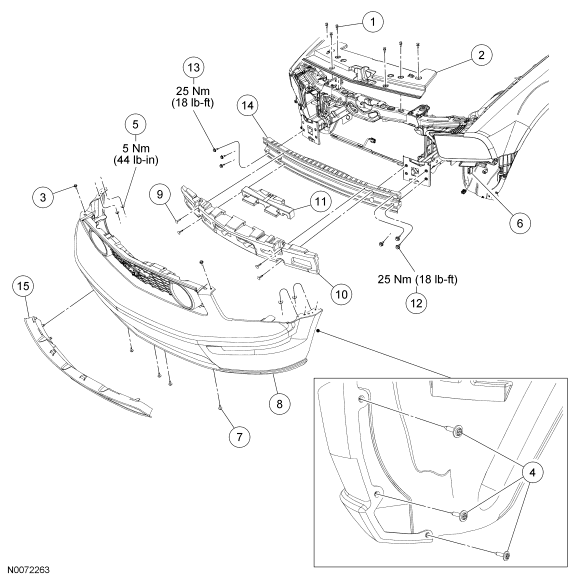

Fig 1: Exploded View Of Front Bumper - Base Vehicle & GT

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W705436	Upper radiator sight shield pin-type retainer (6 required)
2	8C291	Upper radiator sight shield
3	W712277	Front bumper cover bolt (upper) (2 required)
4	W706805	Front fender splash shield-to-front bumper cover screws (6 required)
5	W711059	Front bumper cover-to-reinforcement nut (4 required)
6	-	Side marker light electrical connector (part of 14A464)
7	N801169	Lower air deflector screw (4 required)
8	17D957	Front bumper cover
9	310D12	Front bumper isolator pin-type retainer (4 required)
10	17E898	Front bumper lower outer isolator
11	17C882A	Front bumper upper center inner isolator (V6 only)
11	17C882B	Front bumper upper center inner isolator (GT only)
12	W711097	Front bumper outboard bolt (4 required)
13	W711457	Front bumper inboard bolt (2 required)
14	17757	Front bumper
15	17B814	Lower radiator grille

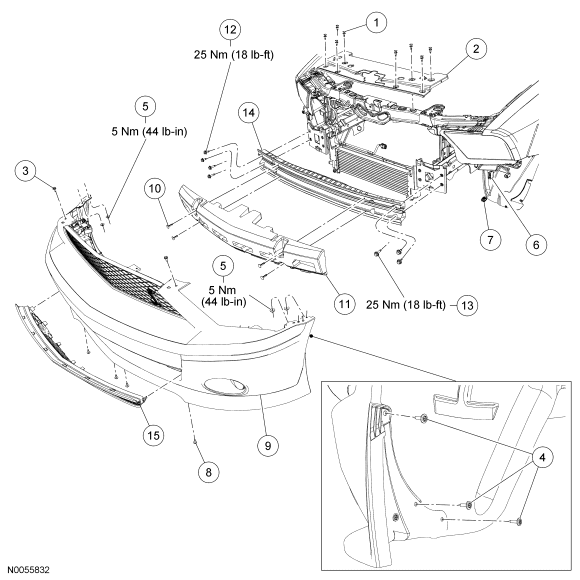

Fig 2: Exploded View Of Front Bumper - Shelby GT 500

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W705436	Upper radiator sight shield pin-type retainer (8 required)
2	8C291	Upper radiator sight shield
3	W712277	Front bumper cover bolt (upper) (2 required)
4	W706805	Front fender splash shield-to-front bumper cover screws (6 required)
5	W711059	Front bumper cover-to-reinforcement nuts (4 required)
6	-	Side marker light electrical connector
7	-	Fog lamp electrical connector
8	N801169	Lower air deflector screw (4 required)
9	17D957	Front bumper cover
10	310D12	Front bumper isolator pin-type retainer (4 required)
11	17C882A	Front bumper lower outer isolator
12	W711097	Front bumper bolt (outboard) (4 required)
13	W711457	Front bumper bolt (inboard) (3 required)
14	17757	Front bumper
15	17B814	Lower radiator grille

For additional information, refer to the appropriate procedures.
