Side Impact Sensor: Notes
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

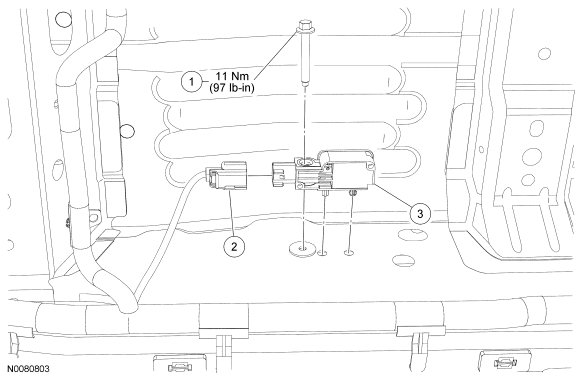

LH side shown, RH similar.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
- |
Side impact sensor bolt (part of 14B345) |
| 2 |
- |
Side impact sensor electrical connector (part of 14A005) |
| 3 |
14B345 |
Side impact sensor |
