Heated Oxygen Sensor (HO2S) and Catalyst Monitor Sensor - Exploded View
WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

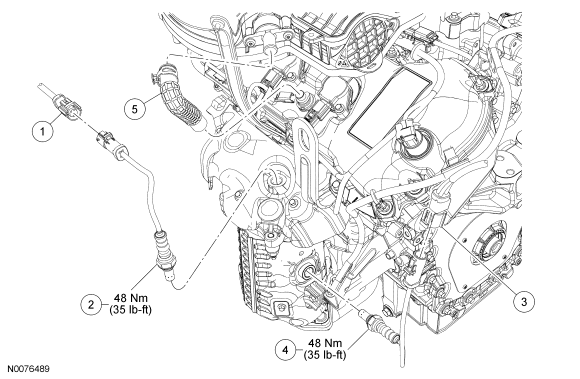

Fig 1: Exploded View Of Heated Oxygen Sensor (HO2S) & Catalyst Monitor Sensor With Torque Specifications - RH Sensors
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Heated oxygen sensor (HO2S) electrical connector |
| 2 | 9F472 | HO2S |
| 3 | 14A464 | Catalyst monitor sensor electrical connector |
| 4 | 9G444 | Catalyst monitor sensor |
| 5 | 6A664 | PCV hose |

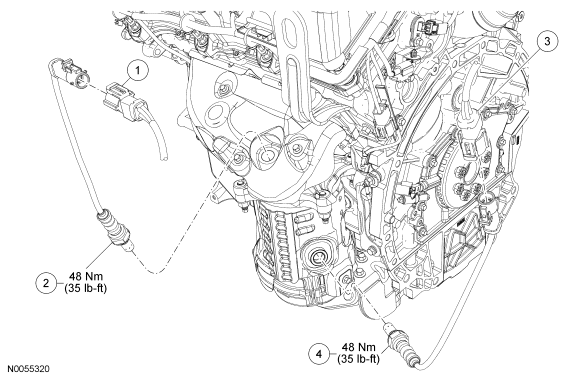

Fig 2: Exploded View Of Heated Oxygen Sensor (HO2S) & Catalyst Monitor Sensor With Torque Specifications - LH Sensors
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Heated oxygen sensor (HO2S) electrical connector |
| 2 | 9F472 | HO2S |
| 3 | 14A464 | Catalyst monitor sensor electrical connector |
| 4 | 9G444 | Catalyst monitor sensor |
- For additional information, refer to the procedures.
