Rear Lamp Assembly: Notes
WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

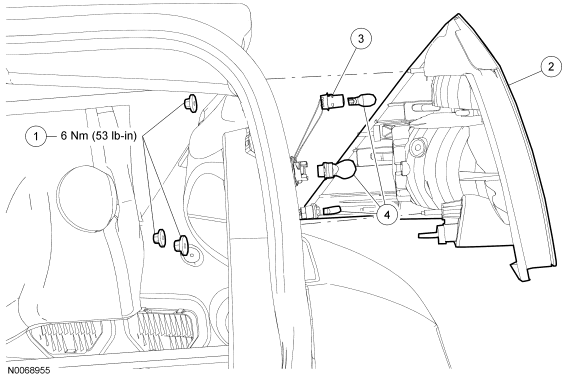

| Item |
Part Number |
Description |
| 1 |
N621927 |
Rear lamp assembly nuts (3 required) |
| 2 |
13B504/13B505 |
Rear lamp assembly (RH/LH) |
| 3 |
- |
Rear lamp bulb holders (part of 13404/13405) |
| 4 |
- |
Rear lamp bulbs |
Courtesy of FORD MOTOR CO.

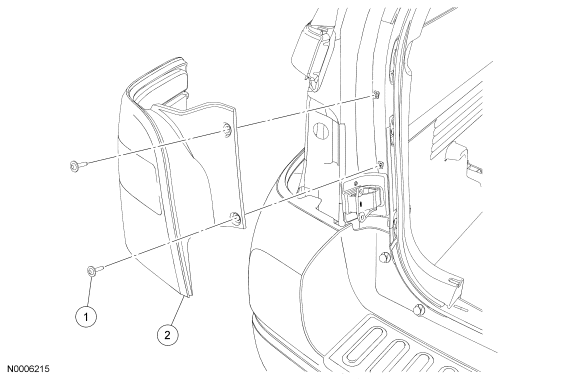

| Item |
Part Number |
Description |
| 1 |
W712697 |
Rear lamp assembly screws (2 required) |
| 2 |
13B504/13B505 |
Rear lamp assembly (RH/LH) |
