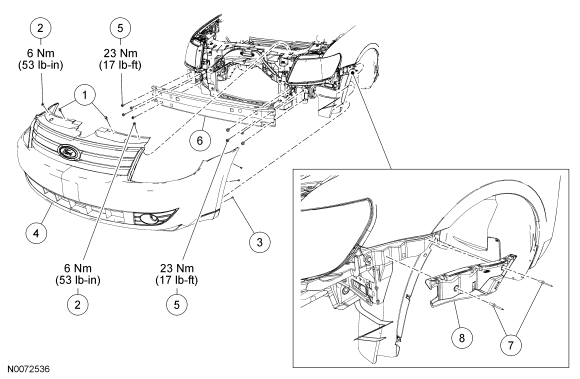

Bumper - Exploded View, Front
WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W705436 |
Front bumper cover scrivets |
| 2 |
N807658 |
Front bumper cover bolts |
| 3 |
W706805 |
Front bumper cover wheel house screw |
| 4 |
17D957 |
Front bumper cover |
| 5 |
W707050 |
Front bumper bolts |
| 6 |
17750 |
Front bumper |
| 7 |
W705376 |
Front bumper cover mounting bracket rivets |
| 8 |
17D958-A LH/ 17D959-A RH |
Front bumper cover mounting bracket |

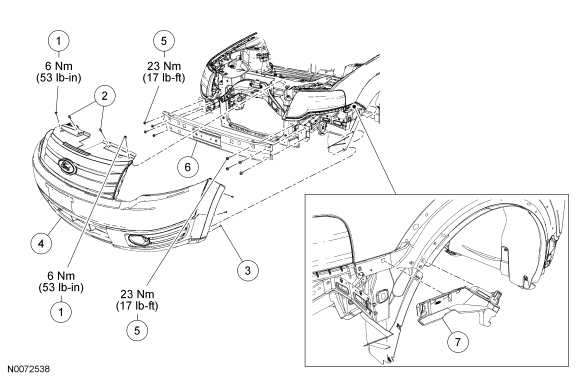

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
N807658 |
Front bumper cover bolts |
| 2 |
W705436 |
Front bumper cover scrivets |
| 3 |
W706805 |
Front bumper cover wheel house screw |
| 4 |
17D957 |
Front bumper cover |
| 5 |
W707050 |
Front bumper bolt |
| 6 |
17750 |
Front bumper |
| 7 |
17D958 |
Front bumper cover mounting bracket |
- For additional information, refer to the procedures in this article.
