Fog Lamp: Notes
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

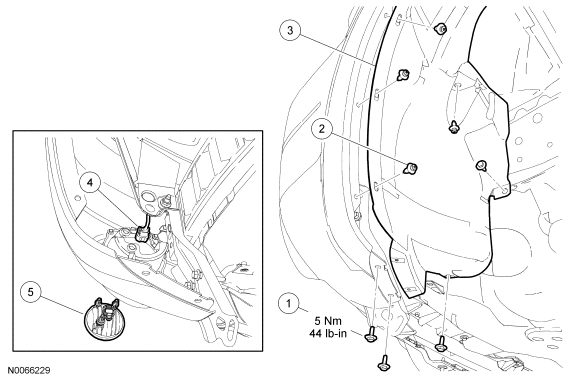

Escape shown, Mariner similar.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W503924 |
Fender splash shield bolts (4 required) |
| 2 |
W706713 |
Fender splash shield pin-type retainers (4 required) |
| 3 |
16103 |
Fender splash shield |
| 4 |
- |
Fog lamp electrical connector (part of 14290) |
| 5 |
15200 |
Fog lamp |
