Rear Ho2S Monitor
Rear Ho2S Monitor

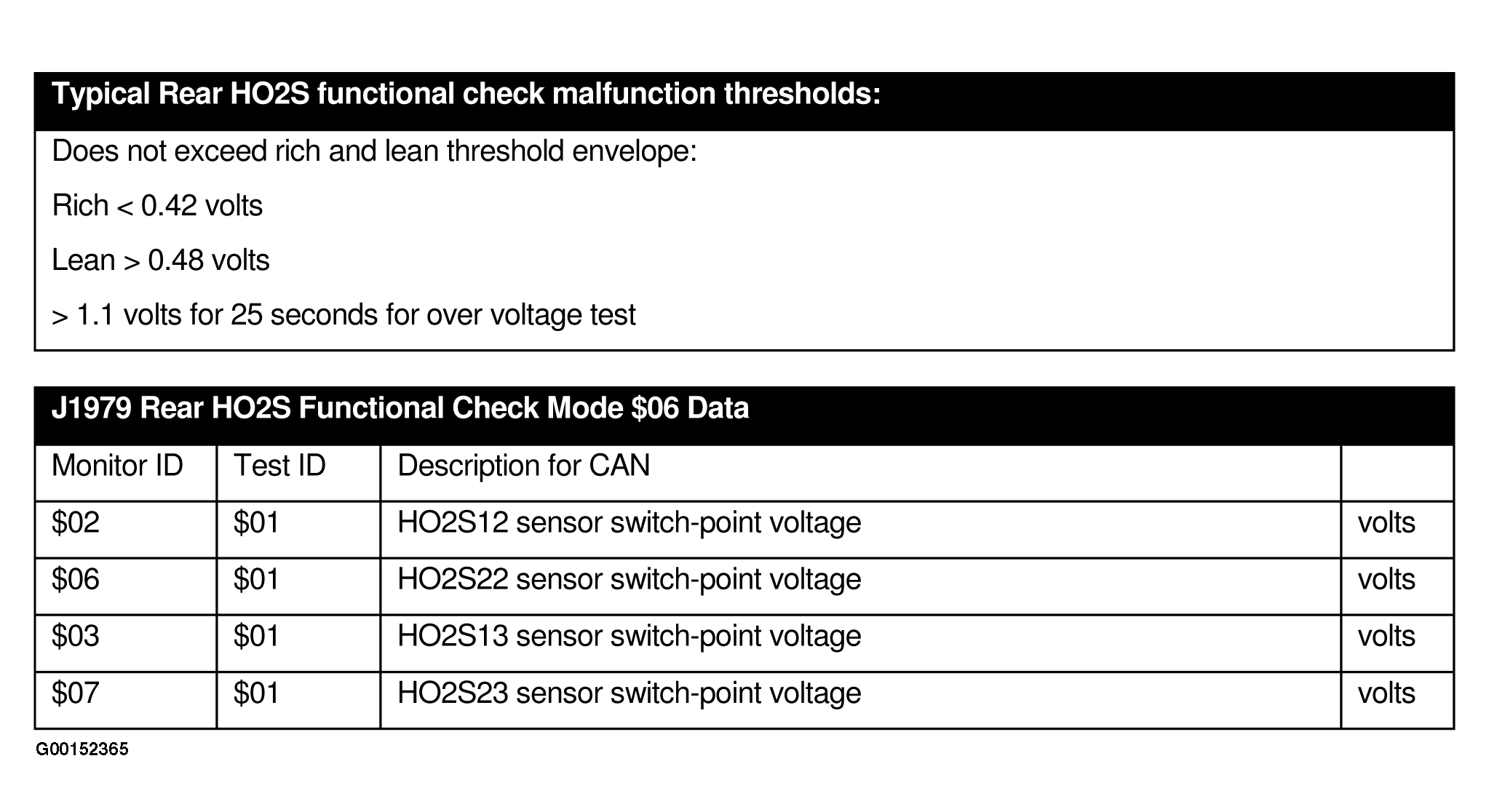

Fig 1: Mode $06 Data For Rear HO2S Functional Check Monitor
Courtesy of FORD MOTOR CO.

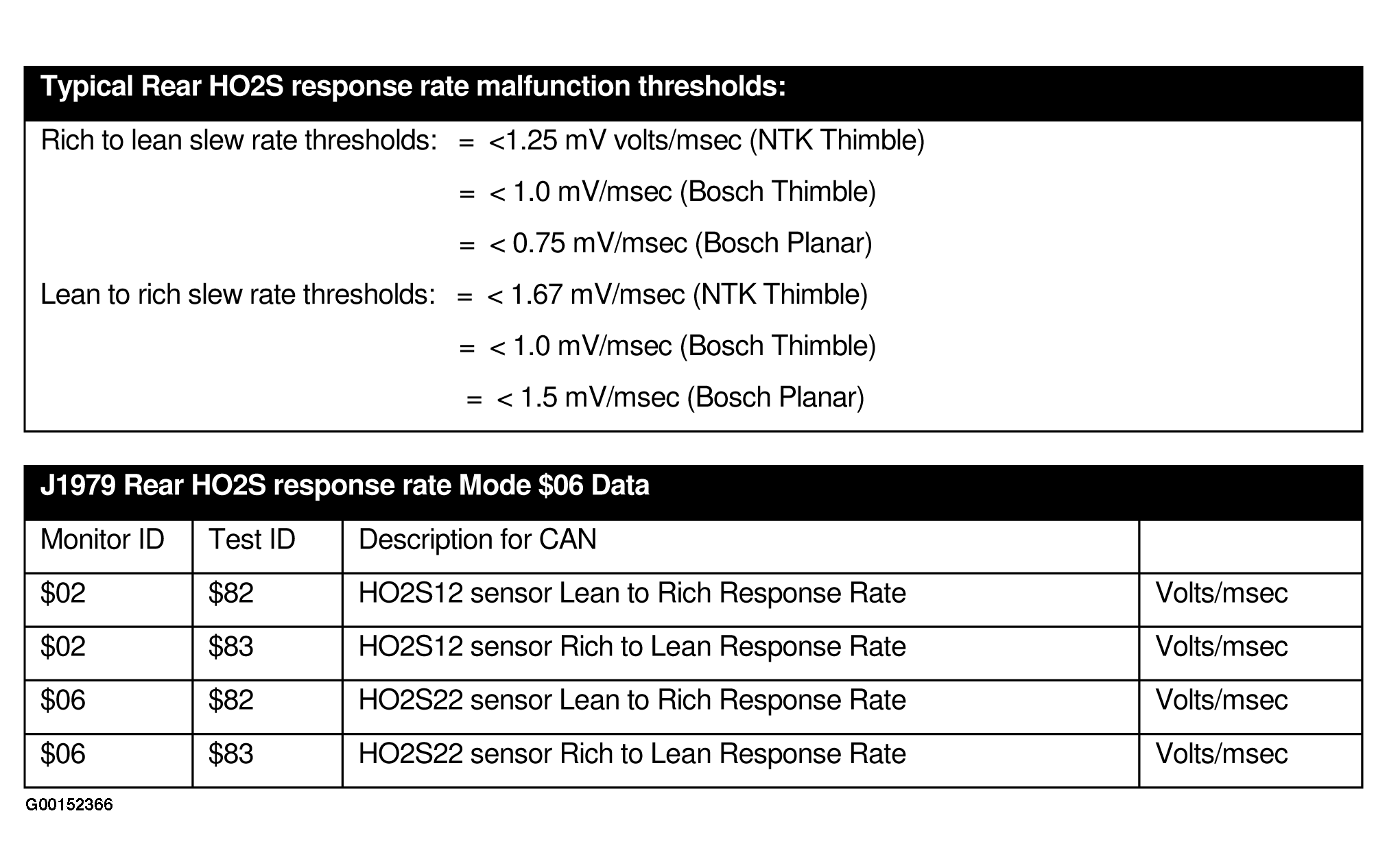

Fig 2: Mode $06 Data For Rear HO2S Response Rate Monitor
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
