Home >> Mercury >> 2009 >> Sable Base, AWD >> Repair and Diagnosis >> Engine Performance >> Mode 6 - 2009 Ford - Except Diesel >> Catalyst Monitor

Catalyst Monitor

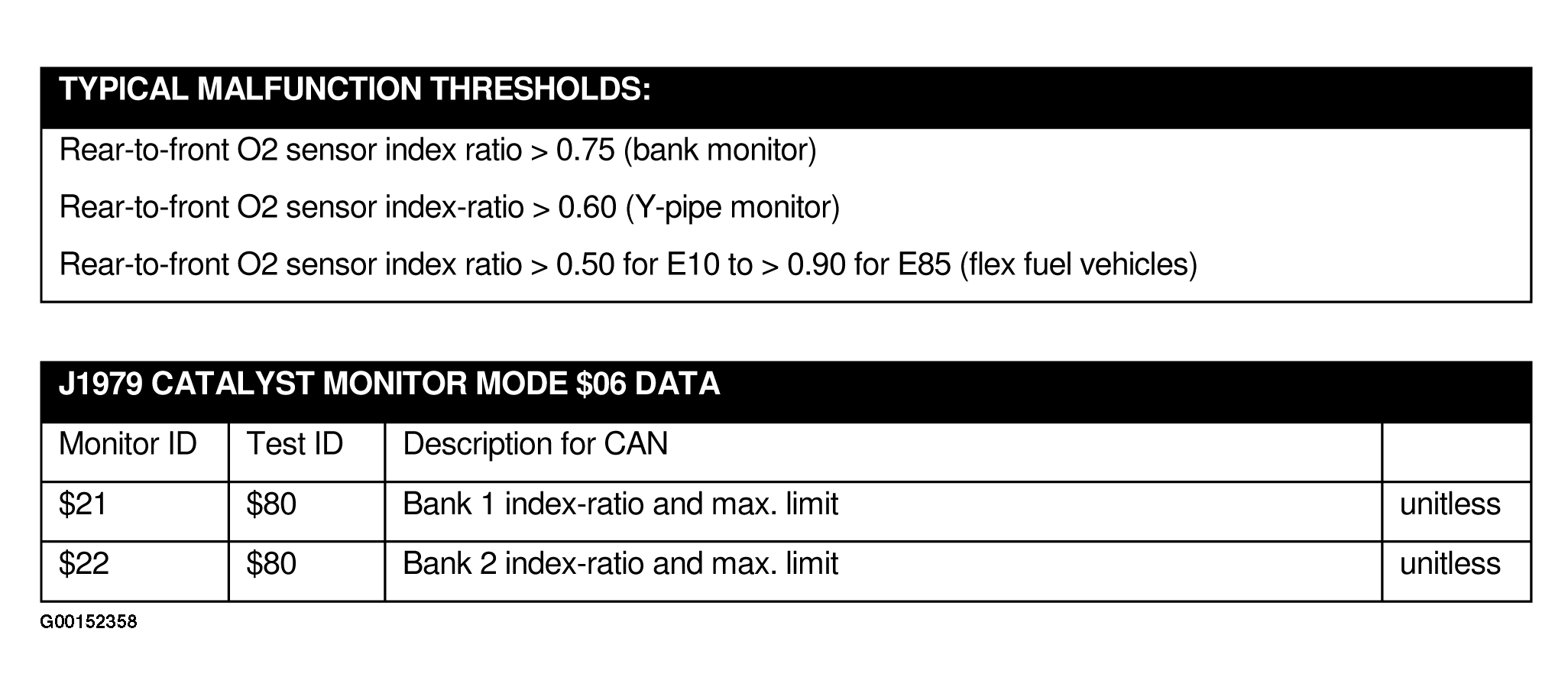

Fig 1: Mode $06 Data For Catalyst Monitor

G00152358

Courtesy of FORD MOTOR CO.
