Home >> Mercury >> 2009 >> Sable Base, AWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector Views >> Speed Control Deactivation Switch Connector - C277

Speed Control Deactivation Switch Connector - C277

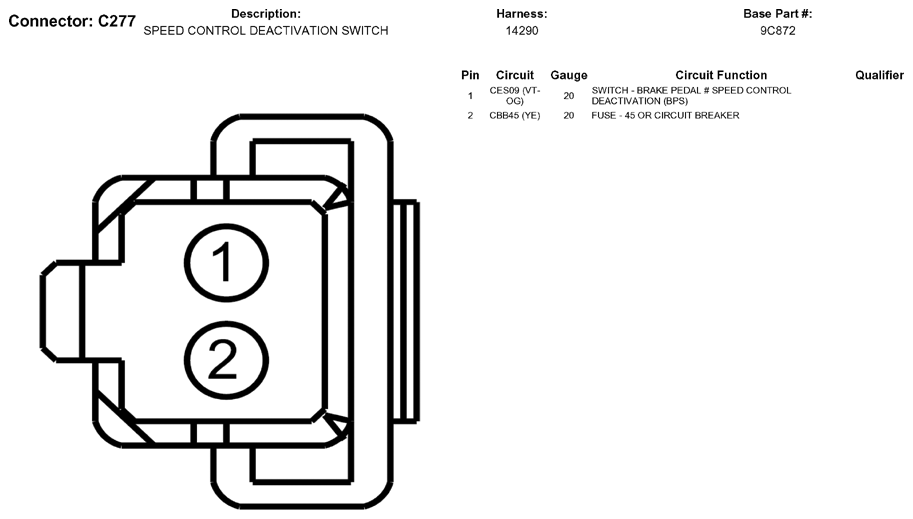

Fig 1: Speed Control Deactivation Switch Connector End View (C277)

G05789970

Courtesy of FORD MOTOR CO.
