Smart Junction Box Connector End View - C2280C

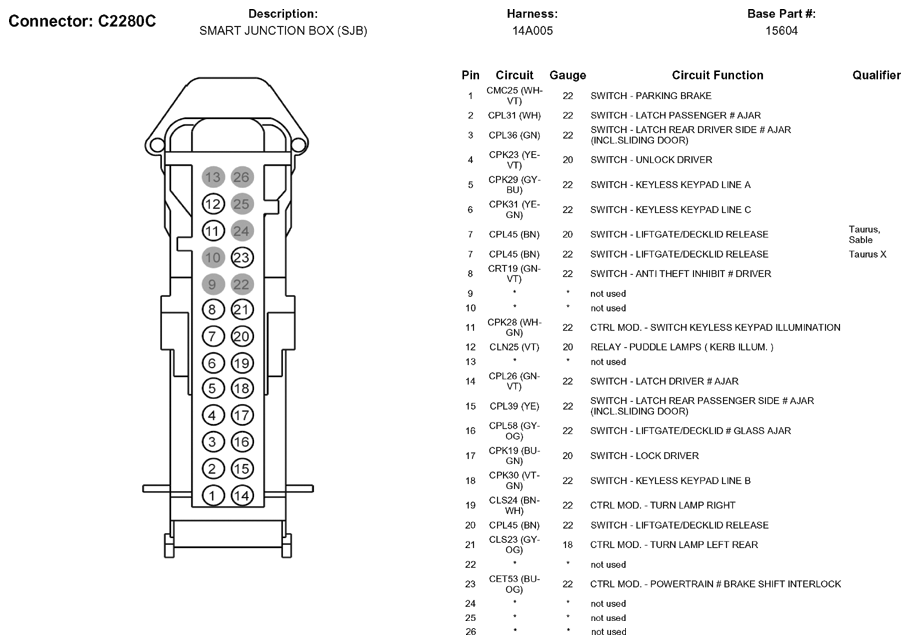

Fig 1: Smart Junction Box Connector End View (C2280C)

G05790129

Courtesy of FORD MOTOR CO.
