Smart Junction Box Connector End View - C2280B

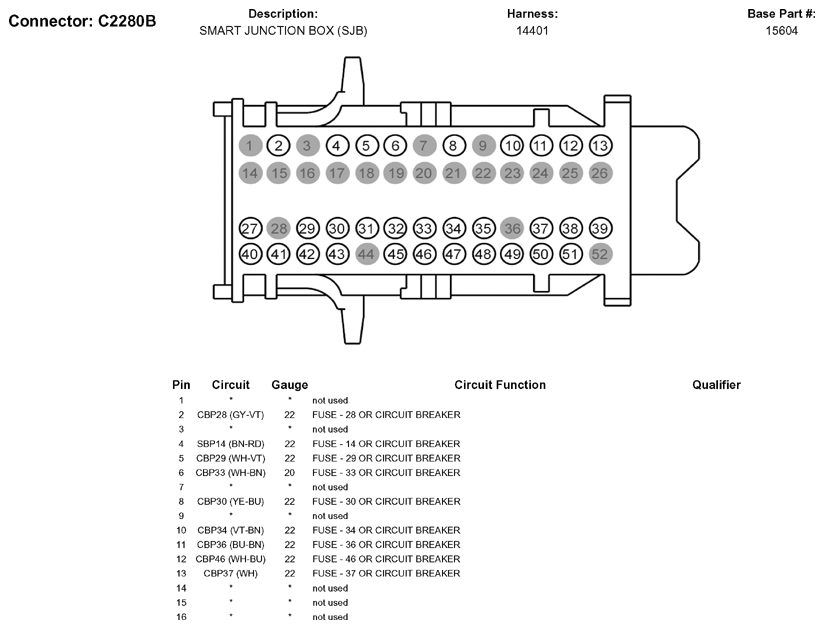

Fig 1: Smart Junction Box Connector End View (C2280B) (1 Of 2)
G05790127Courtesy of FORD MOTOR CO.

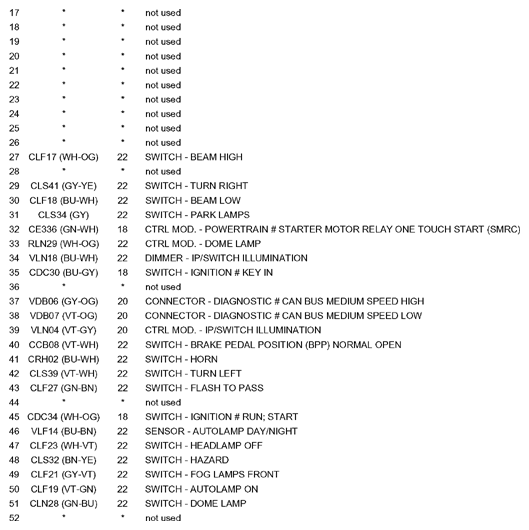

Fig 2: Smart Junction Box Connector End View (C2280B) (2 Of 2)
G05790128Courtesy of FORD MOTOR CO.
