Overhead Console Connector End View - C9013

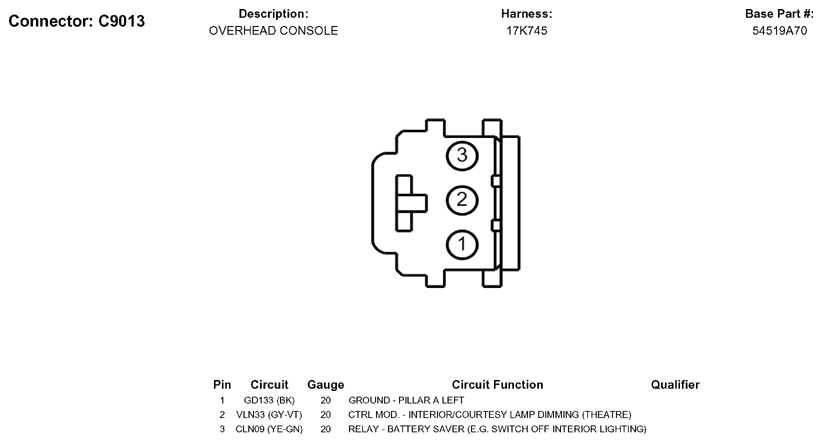

Fig 1: Overhead Console Connector End View (C9013)

G05790213

Courtesy of FORD MOTOR CO.
