Left Front Impact Sensor Connector - C1465

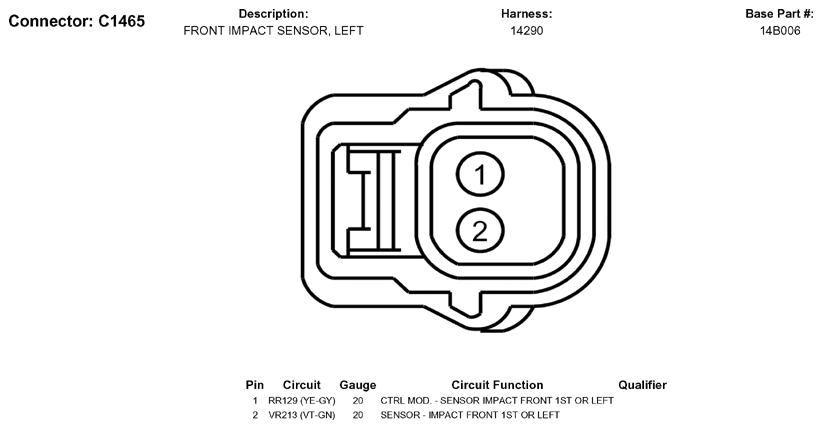

Fig 1: Left Front Impact Sensor Connector End View (C1465)

G05790108

Courtesy of FORD MOTOR CO.
