Autolamp Sensor / Sunload Sensor Connector - C286

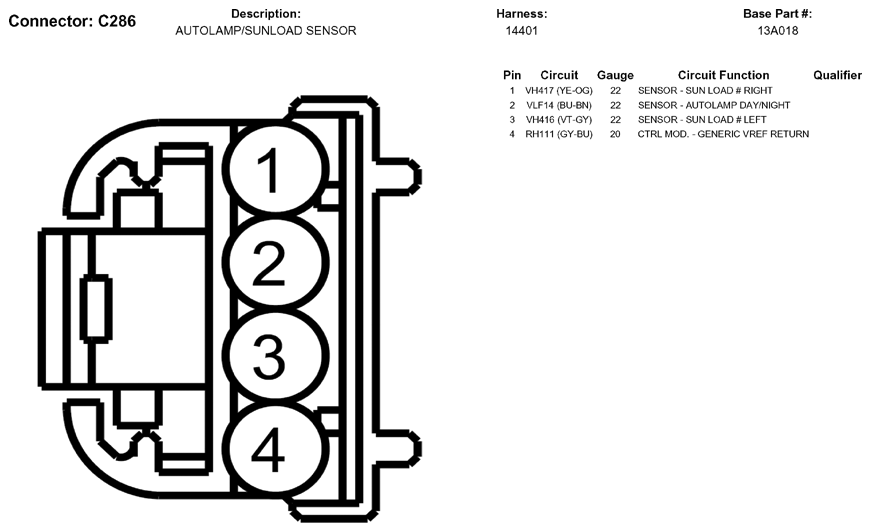

Fig 1: Autolamp Sensor / Sunload Sensor Connector End View (C286)

G05789973

Courtesy of FORD MOTOR CO.
