Restraints Control Module (RCM): Notes

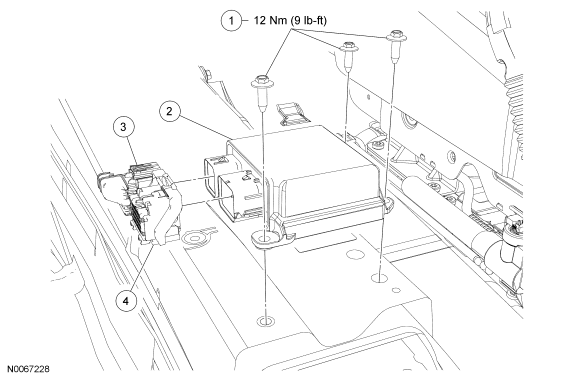

Fig 1: Restraints Control Module (RCM) With Torque Specification
GF0045586Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W707722 Restraints control module (RCM) bolts (3 required)
2 14B321 RCM
3 - Small RCM electrical connector (part of 14401)
4 - Large RCM electrical connector (part of 14A005)
