Occupant Classification Sensor - Service Kit: Notes

Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS)	software with appropriate hardware, or equivalent scan tool

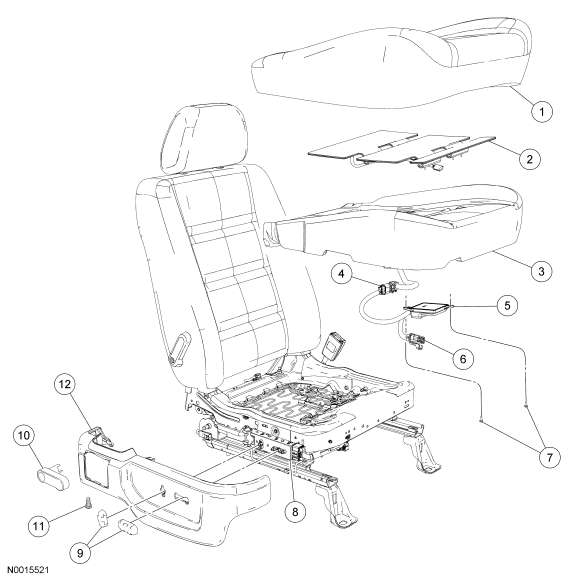

Fig 1: Exploded View Of Occupant Classification Sensor - Service Kit

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	62900	Seat cushion trim cover
2	-	Seat cushion heated seat element (if equipped)
3	-	Seat cushion foam pad (part of occupant classification system [OCS] service kit 603B02)
4	-	OCS pressure sensor (part of OCS service kit 603B02)
5	-	Occupant classification system module (OCSM) (part of service kit 603B02)
6	-	OCS service kit electrical connector (part of OCS service kit 603B02)
7	-	OCSM rivets (part of OCS service kit 603B02)
8	14A701	Power seat switch (if equipped)
9	-	Power seat switch knobs (if equipped)
10	620A90	Manual recline handle (if equipped)
11	-	Seat cushion side shield screw
12	62184	Seat side trim cover
