Right Rear Lamp Assembly Connector End View - C417

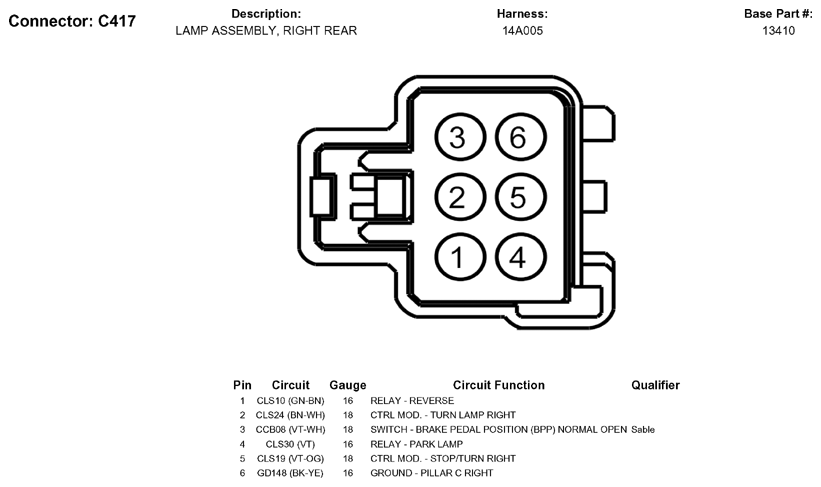

Fig 1: Right Rear Lamp Assembly Connector End View (C417)

G05790016

Courtesy of FORD MOTOR CO.
