Passenger Side Front Seat Control Switch Connector End View - C330

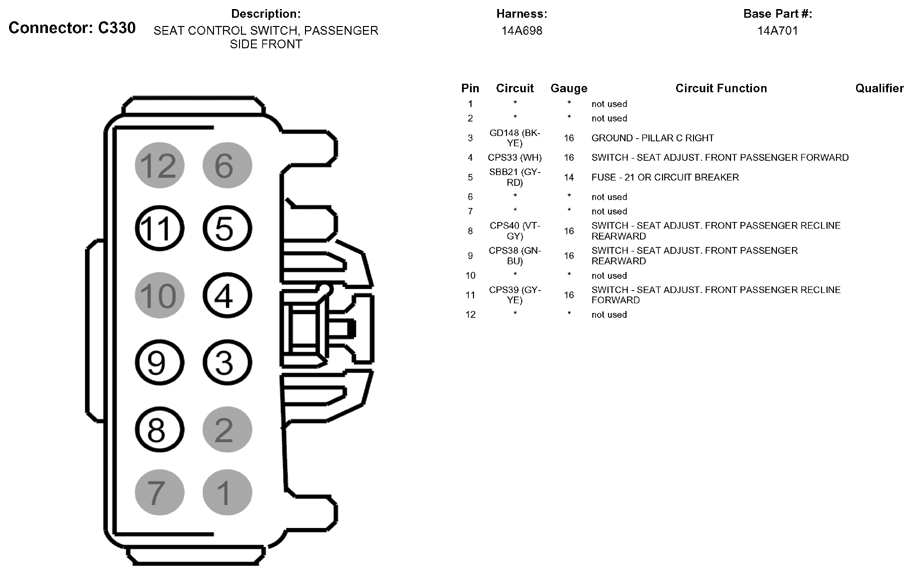

Fig 1: Passenger Side Front Seat Control Switch Connector End View (C330)

G05789988

Courtesy of FORD MOTOR CO.
