Overhead Console Connector End View - C930

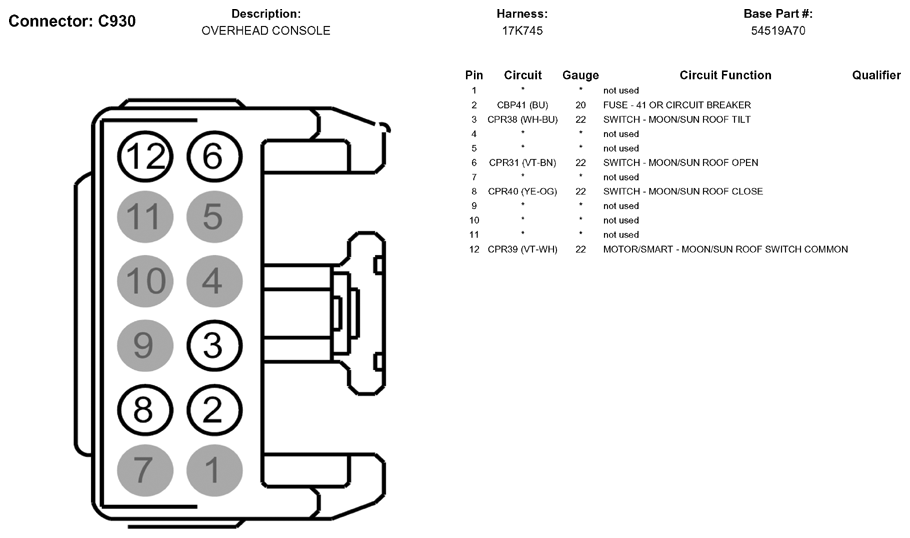

Fig 1: Overhead Console Connector End View (C930)

G05790073

Courtesy of FORD MOTOR CO.
