Master Window Adjust Switch Connector End View - C504A

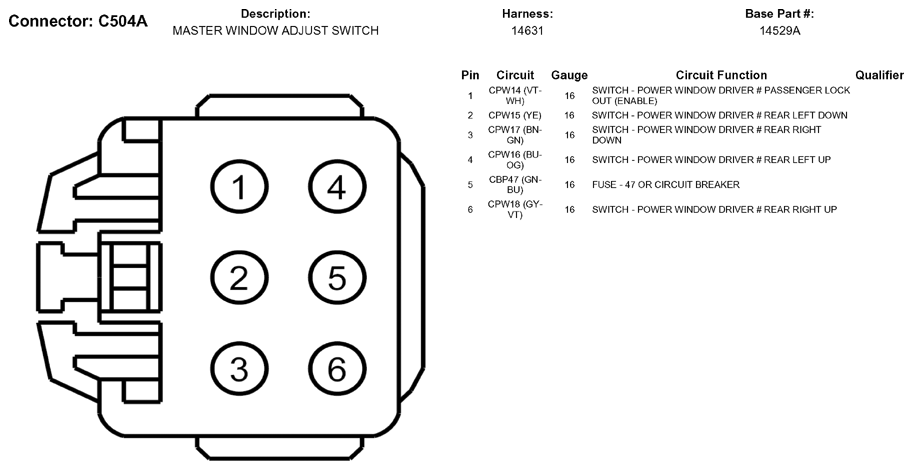

Fig 1: Master Window Adjust Switch Connector End View (C504A)

G05790030

Courtesy of FORD MOTOR CO.
