Liftgate Drive Motor Assembly Connector - C4332

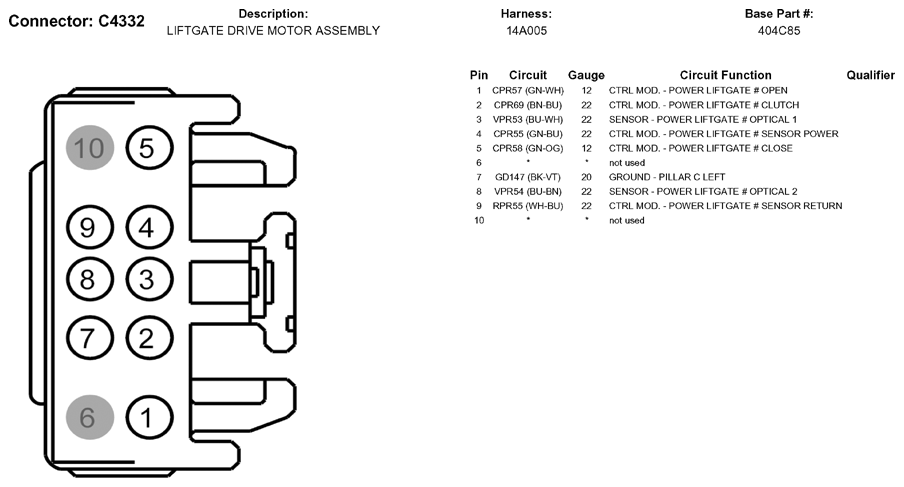

Fig 1: Liftgate Drive Motor Assembly Connector End View (C4332)

G05790207

Courtesy of FORD MOTOR CO.
