Keypad Switch Assembly Connector - C500

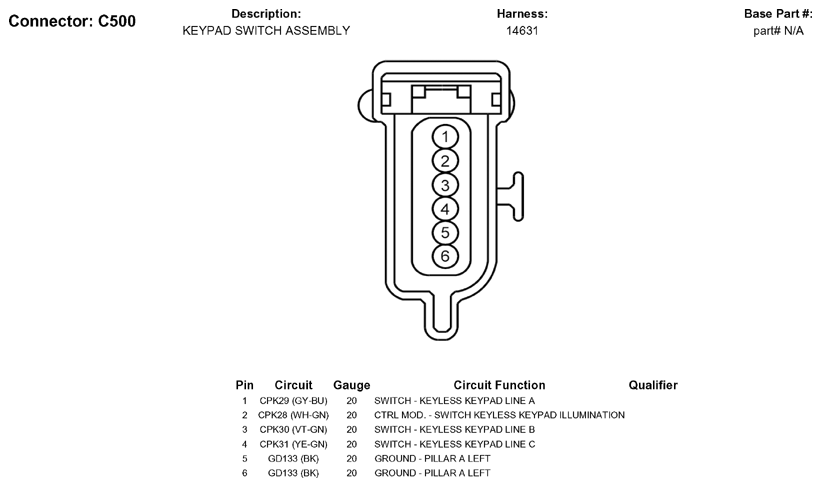

Fig 1: Keypad Switch Assembly Connector End View (C500)

G05790028

Courtesy of FORD MOTOR CO.
