Driver Side Front Seat Control Switch Connector End View - C369

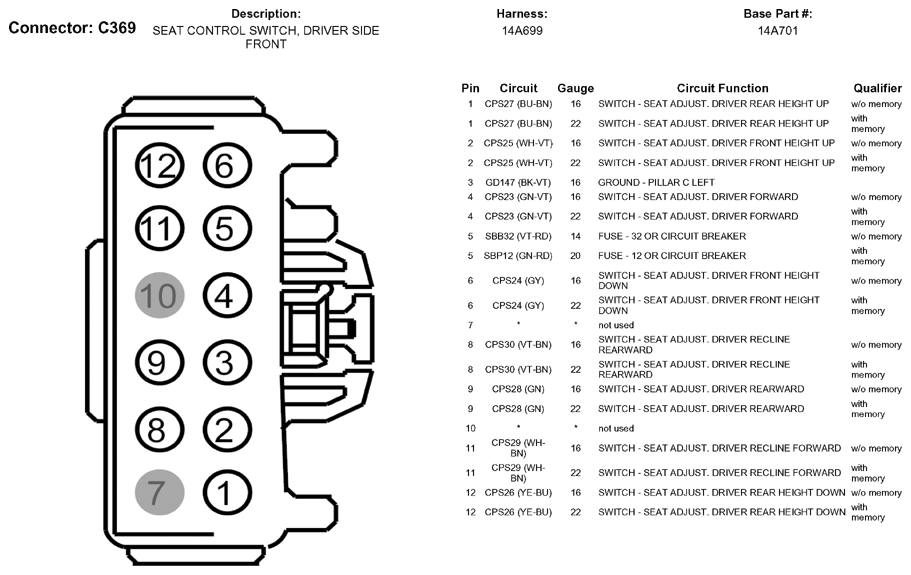

Fig 1: Driver Side Front Seat Control Switch Connector End View (C369)

G05790006

Courtesy of FORD MOTOR CO.
