Driver Side Air Bag Module Connector - C3226

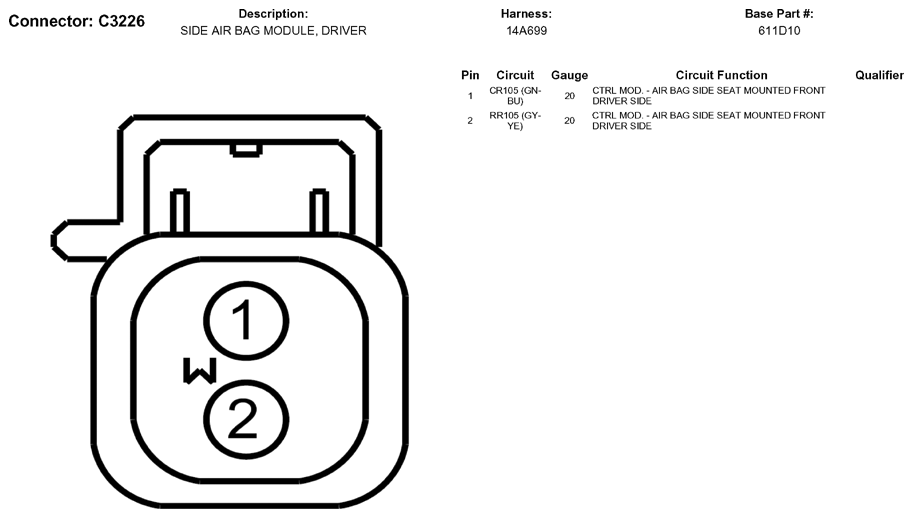

Fig 1: Driver Side Air Bag Module Connector End View (C3226)

G05790169

Courtesy of FORD MOTOR CO.
