Driver Seat Module Connector End View - C341C

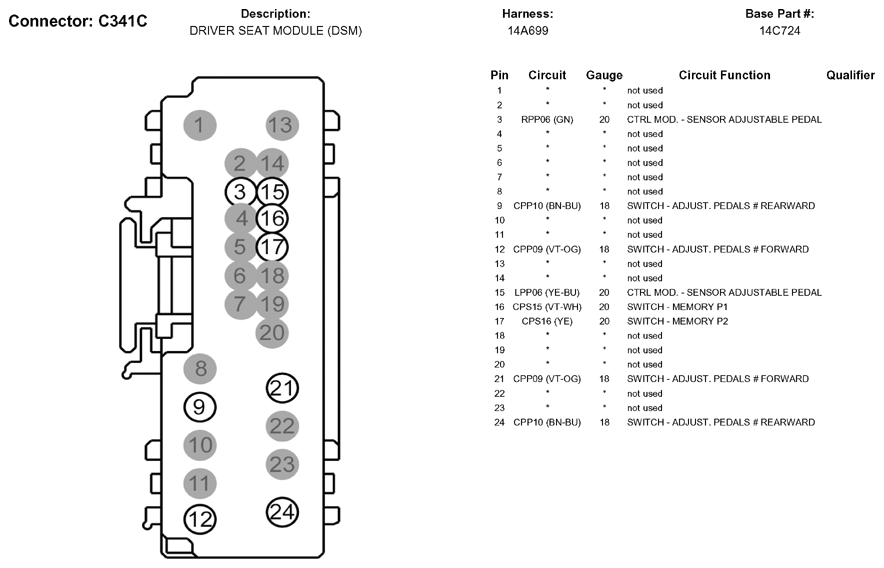

Fig 1: Driver Seat Module Connector End View (C341C)

G05789997

Courtesy of FORD MOTOR CO.
