All Wheel Drive Module Connector - C281

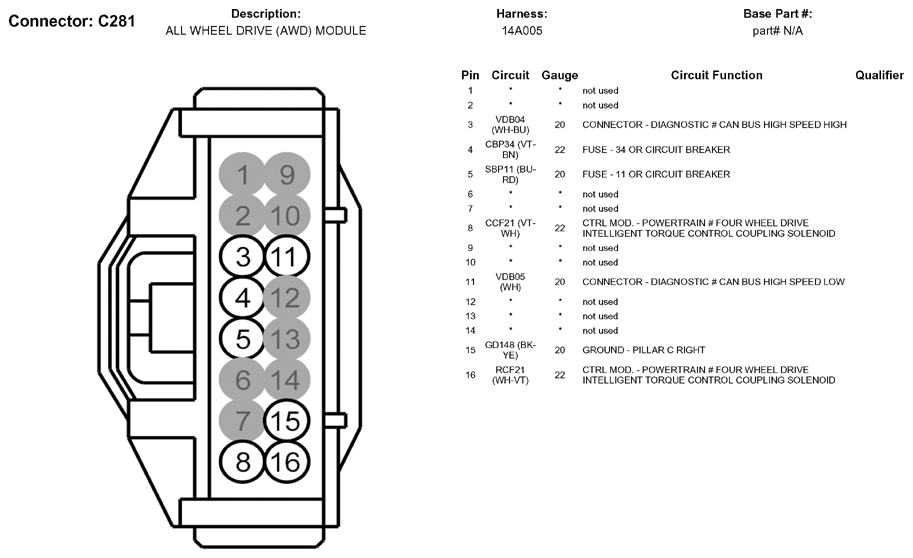

Fig 1: All Wheel Drive Module Connector End View (C281)

G05789972

Courtesy of FORD MOTOR CO.
